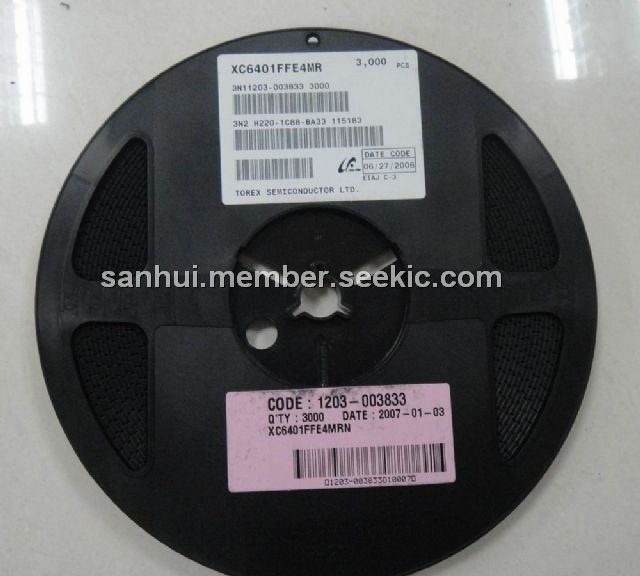

XC6401FFE4MR

dual ldo regulator, 0.3 V, 700 mA, SOT23

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.13

PartNumber:: XC6401FFE4MR

Brand:: Torex Semiconductor - TOREX | Pack: SOT | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-10

From Other Seller

Part Number:XC6401FFE4MR
US $0.10 - 0.13
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XC6401FFE4MR is a dual ldo regulator. Performance features of the XC6401FFE4MR includes low output noise, high ripple rejection ratio, low dropout and very fast turn-on times. The XC6401FFE4MR includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators internally. The XC6401FFE4MR current limiters foldback circuit also operates as a short protect for the output current limiter. The output voltage for each regulator is set independently by laser trimming. Voltages are selectable in 50mV steps within a range of 0.8V to 5.0V. The XC6401FFE4MR is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies. The EN function allows the output of each regulator to be turned off independently, resulting in greatly reduced power consumption. The XC6401FFE4MR is available in the SOT-26W or USP-6B, USP-6C chip-scale package.

Parametrics

XC6401FFE4MR absolute maximum ratings: (1)Input Voltage VIN: 6.5 V; (2)Output Current IOUT1 + IOUT2: 700 mA; (3)Output Voltage VOUT VSS: -0.3 ~ VIN +0.3 V; (4)EN Pin Voltage VEN VSS: -0.3 ~ 6.5 V; (5)Operating Temperature Range Topr: -40 ~ +85 ℃; (6)Storage Temperature Range Tstg: -55 ~ +125 ℃.

Features

XC6401FFE4MR features: (1)Maximum Output Current : More than 150mA (300mA limit); (2)Dropout Voltage : 100mV @100mA; (3)Operating Voltage Range : 1.5V ~ 6.0V; (4)Output Voltage Range : 0.8V~5.0V (50mV increments); (5)Standby Current : Less than 0.1uA (TYP.); (6)High Ripple Rejection : 70dB @1kHz; (7)Operating Temperature Range : －40℃ ~ +85℃; (8)Low ESR Capacitor Compatible : Ceramic capacitor.
