Product Summary

MD2533-D8G-X-P is an Embedded Flash Drive (EFD) designed for mobile handsets and consumer electronics devices. MD2533-D8G-X-P is the new generation of the successful msystems’ mDOC product family, enabling tens of millions of handsets and other mobile devices since the year 2000. MD2533-D8G-X-P is a hybrid device combining an embedded thin flash controller and standard flash memory. In addition to the high reliability and high system performance offered by the current mDOC family of products, MD2533-D8G-X-P offers plug-and-play integration, support for multiple NAND technologies and more features such as advanced power management schemes.

Parametrics

Absolute maximum ratings:(1)16-byte Unique Identification (UID) number; (2)32-bit Random number Generator (RNG); (3)10 configurable protected partitions for data and code; (4)Protected Bad Block Table.

Features

Features:(1)Flash disk for both code and data storage; (2)Code and data storage protection; (3)Low voltage; (4)Current Consumption; (5)Active mode: 30mA; (6)Power Save mode: 20mA; (7)Deep Power-Down mode: 45uA; (8)Standby mode : up to 10mA; (9)1Gb (128MB) – 16Gb (2GB) data storage capacity, with device cascading options for up to 32Gb (4GB); (10)Enhanced Programmable Boot Block (32KB) enabling eXecute In Place (XIP) functionality using 16-bit access; (11)Small form factors; (12)mDOC H3 1Gb/2Gb - 115-ball; (13)mDOC H3 4Gb/8Gb/16Gb - 115-ball Fine-Pitch Ball Grid Array (FBGA) 12x18mm.

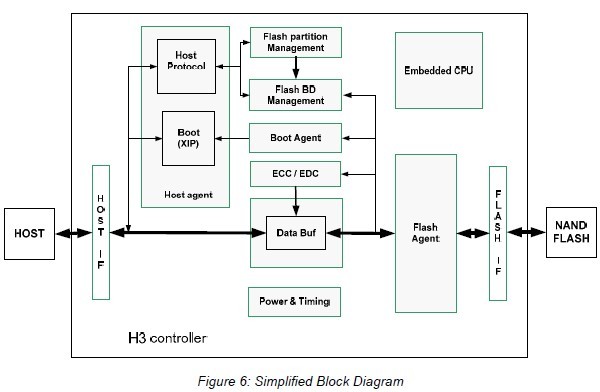

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MD2533-D8G-X-P
MD2533-D8G-X-P

IC MDOC H3 8GB FBGA
Data Sheet
Negotiable
MD2533-D8G-X-P/Y
MD2533-D8G-X-P/Y

IC MDOC H3 8GB FBGA
Data Sheet
Negotiable
