HEDS-9730#Q50

incremental encoder module, a lensed LED source, a detector IC, a small C-shaped plastic package

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: HEDS-9730#Q50

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-18

From Other Seller

Part Number:HEDS-9730#Q50
US $1.00 - 5.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

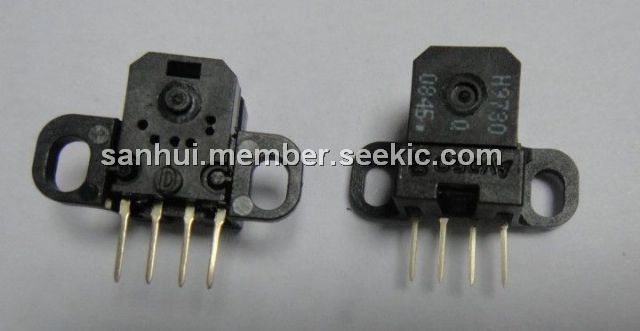

The HEDS-9730#Q50 is a high performance incremental encoder module. When operated in conjunction with either a codewheel or codestrip, this module detects rotary or linear position. The encoder consists of a lensed LED source and a detector IC enclosed in a small C-shaped plastic package. Due to a highly collimated light source and a unique photodetector array, the module is extremely tolerant to mounting misalignment. The standard HEDS-9730#Q50 is designed for use with an appropriate optical radius codewheel or linear codestrip. It provides sophisticated motion detection, making closed loop control very cost competitive. Typical applications include printers, plotters, copiers and office automation equipment.

Parametrics

Absolute maximum ratings: (1)Storage Temperature, TS:-40 to 85°C; (2)Operating Temperature, TA:-40 to 85°C; (3)Supply Voltage, VCC:-0.5 to 7Volts; (4)Output Voltage, VO: -0.5 to VCC Volts; (5)Output Current per Channel, IOUT: -1.5 to19 mA; (6)Soldering Temperature, TSOL: 20 to 260 °C; (7)Load Capacitance, CL: 100 pF max.

Features

Features: (1)Small Size; (2)High Resolution; (3)Two Channel Quadrature Output; (4)Linear and Rotary Applications; (5)No Signal Adjustment required; (6)TTL or 3.3V/5V CMOS Compatible; (7)Wave Solderable; (8)Lead-free Package; (9)-40°C to 85°C Operating Temperature; (10)Single 3.3V Supply.
