Product Summary

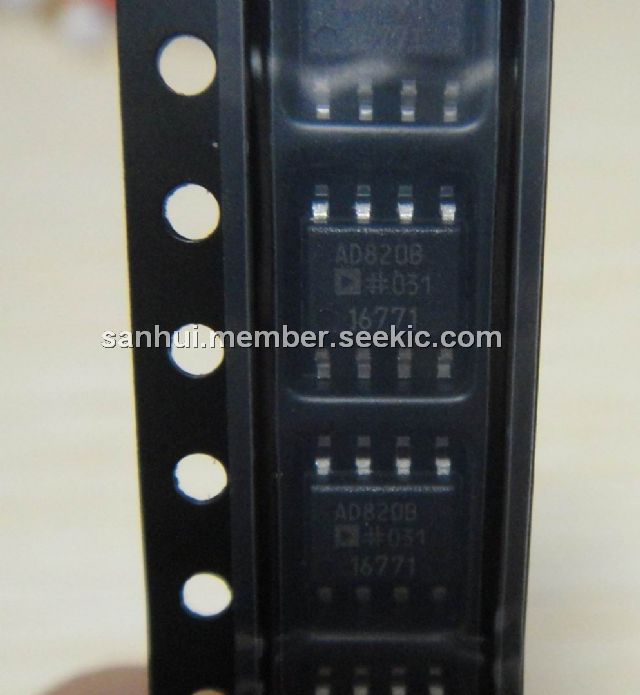

The AD820BRZ-REEL is a precision, low power FET input op amp that can operate from a single supply of 5.0 V to 36 V, or dual supplies of ±2.5 V to ±18 V. The AD820BRZ-REEL has true single-supply capability, with an input voltage range extending below the negative rail, allowing the AD820 to accommodate input signals below ground in the single-supply mode. Output voltage swing extends to within 10 mV of each rail, providing the maximum output dynamic range. The AD820BRZ-REEL is available in two performance grades. The A and B grades are rated over the industrial temperature range of －40°C to +85°C. The AD820 is offered in two 8-lead package options: plastic DIP (PDIP) and surface mount (SOIC).
Parametrics
AD820BRZ-REEL absolute maximum ratings: (1)Supply Voltage: ±18 V ; (2)Internal Power Dissipation1: Plastic DIP (N): 1.6 W, SOIC (R): 1.0 W ; (3)Input Voltage: (+VS + 0.2 V)to －(20 V + VS); (4)Output Short-Circuit Duration: Indefinite; (5)Differential Input Voltage: ±30 V ; (6)Storage Temperature Range: N: －65°C to +125°C,R: －65°C to +150°C; (7)Operating Temperature Range AD820A/B: －40°C to +85°C.
Features
AD820BRZ-REEL features: (1)Excellent load drive: Capacitive load drive up to 350 pF, Minimum output current of 15 mA; (2)Excellent ac performance for low power: 800 uA maximum quiescent current, Unity gain bandwidth: 1.8 MHz, Slew rate of 3.0 V/us; (3)Excellent dc performance: 800 uV maximum input offset voltage, 1 uV/°C typical offset voltage drift, 25 pA maximum input bias current; (4)Low noise 13 nV/√Hz @ 10 kHz.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD820BRZ-REEL |
|
IC OPAMP JFET R-R 1.8MHZ 8SOIC |
Data Sheet |
|
|
||||||
|
AD820BRZ-REEL7 |
|
IC OPAMP JFET R-R 1.8MHZ 8SOIC |
Data Sheet |
|
|
||||||
