Product Summary
The TC74LCX373FK is a high-performance CMOS octal D-type latch. Designed for use in 3.3-V systems, the TC74LCX373FK achieves high-speed operation while maintaining the CMOS low power dissipation. The TC74LCX373FK is designed for low-voltage (3.3 V) VCC applications, but it could be used to interface to 5-V supply environment for both inputs and outputs. The TC74LCX373FK is controlled by a latch enable input (LE) and an output enable input (OE ). When the OE input is high, the eight outputs are in a high-impedance state. All inputs are equipped with protection circuits against static discharge.
Parametrics
TC74LCX373FK absolute maximum ratings: (1)Input diode current IIK: －50 mA; (2)Output diode current IOK: ±50 (Note 4)mA; (3)DC output current IOUT: ±50 mA; (4)Power dissipation PD: 180 mW; (5)DC VCC/ground current ICC/IGND: ±100 mA; (6)Storage temperature Tstg: －65 to 150 °C.
Features
TC74LCX373FK features: (1)Low-voltage operation: VCC = 2.0 to 3.6 V; (2)High-speed operation: tpd = 8.0 ns (max)(VCC = 3.0 to 3.6 V); (3)Output current: |IOH|/IOL = 24 mA (min)(VCC = 3.0 V); (4)Latch-up performance: －500 mA; (5)Available in JEITA SOP, TSSOP and VSSOP (US); (6)Power-down protection provided on all inputs and outputs; (7)Pin and function compatible with the 74 series (74AC/VHC/HC/F/ALS/LS etc.)373 type.

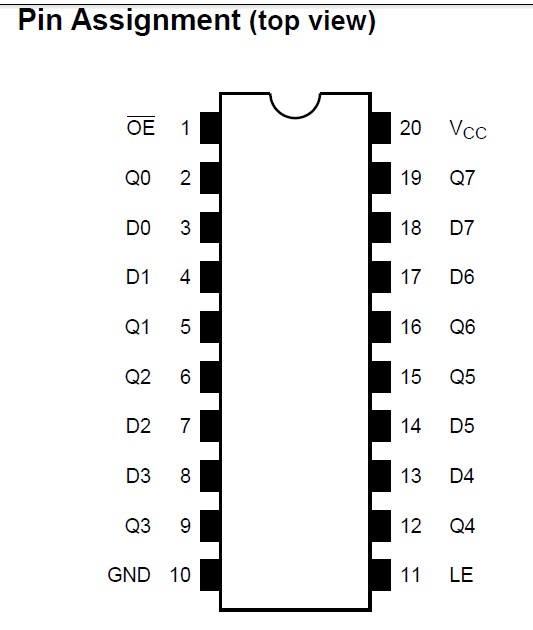

Diagrams
 |
