Product Summary

The G547I1P81U is an electrically erasable PROM device that use the standard 2－ wire interface for communications. The G547I1P81U contains a memory array of 32Kbits (4K x 8) and 64K－bits (8K x 8), respectively. Each device is organized into 32 byte pages for page write mode. The G547I1P81U operates in a wide voltage range of 1.8V to 5.5V to be compatible with most application voltages. ISSI designed this device family to be a practical, low－power 2－wire EEPROM solution. The device is available in 8－pin PDIP, 8－pin SOIC, 8－pin TSSOP, and 8－pin MSOP packages.

Parametrics

G547I1P81U absolute maximum ratings: (1)VS Supply Voltage: －0.5 to +6.5 V; (2)VP Voltage on Any Pin: －0.5 to Vcc + 0.5 V; (3)TBIAS Temperature Under Bias: －55 to +125 °C; (4)TSTG Storage Temperature: －65 to +150 °C; (5)IOUT Output Current: 5 mA.

Features

G547I1P81U features: (1)Automotive and Industrial temperature ranges; (2)8－pin PDIP, 8－pin SOIC, 8－pin TSSOP, and 8－pin MSOP packages; (3)Lead－free Available; (4)Sequential Read Feature; (5)Filtered Inputs for Noise Suppression; (6)Self time write cycle with auto clear 5 ms max.@ 2.5V; (7)Two－Wire Serial Interface, I2CTM Compatible Bi－directional data transfer protocol; (8)Wide Voltage Operation Vcc = 1.8V to 5.5V; (9)400 KHz (2.5V)and 1MHz (5.0V)Compatible.

Diagrams

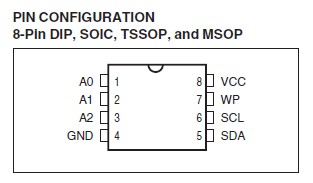

G547I1P81U pin connetion

G547
G547
