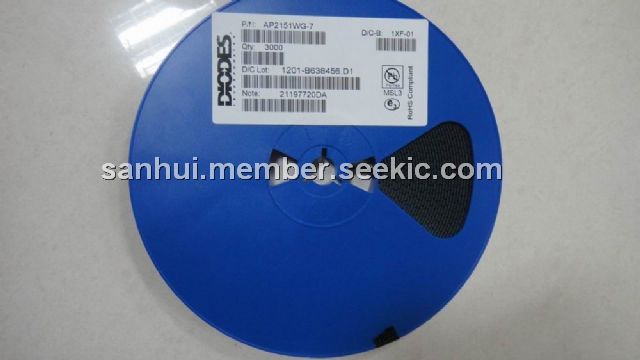

AP2151WG-7

integrated high side power switch, 6.5 V, SOT23-5

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.60

PartNumber:: AP2151WG-7

Brand:: Diodes Incorporated - Diodes | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-17

From Other Seller

Part Number:AP2151WG-7
US $0.30 - 0.60
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AP2151WG-7 is an integrated high side power switch optimized for Universal Serial Bus (USB) and other hot swap applications. The AP2151WG-7 complies with USB 2.0 and available with both polarities of Enable input. The AP2151WG-7 offers current and thermal limiting and short circuit protection as well as controlled rise time and under voltage lockout functionality. A 7ms deglitch capability on the open drain Flag output prevents false over current reporting and does not require any external components.

Parametrics

AP2151WG-7 absolute maximum ratings: (1)VIN Input Voltage: 6.5 V; (2)VOUT Output Voltage: VIN + 0.3 V; (3)VEN , VFLG Enable Voltage: 6.5 V; (4)Iload Maximum Continuous Load Current: Internal Limited A; (5)TJmax Maximum Junction Temperature: 150 °C; (6)TST Storage Temperature Range (Note 3): －65 to 150 °C.

Features

AP2151WG-7 features: (1)Single USB port power switches; (2)Over－current and thermal protection; (3)0.8A accurate current limiting; (4)Reverse Current Blocking; (5)95mΩ on－resistance; (6)Input voltage range: 2.7V – 5.5V; (7)0.6ms typical rise time; (8)Very low shutdown current: 1uA (max); (9)Fault report (FLG)with blanking time (7ms typ); (10)ESD protection: 4KV HBM, 400V MM; (11)Active high (AP2151)or active low (AP2141)enable; (12)Ambient temperature range －40°C to 85°C.
