Product Summary
The NH82801GBM is designed as one member of the intel I/O controller hub 7 (ICH7) family. It is ICH7 mobile (ICH7-M). The NH82801GBM incorporates a variety of PCI functions that are divided into six logical devices.
Parametrics
Absolute maximum ratings: (1) voltage on any 3.3V pin with respect to ground: -0.5 to Vcc3_3+0.5V. (2) voltage on any 5V tolerant pin with respect to ground (V5REF = 5V): -0.5V to V5REF+0.5V. (3) 1.05V supply voltage with respect to Vss: -0.5V to 2.1V. (4)1.5V supply voltage with respect to Vss: -0.5 to 2.1V. (5) 3.3V supply voltage with respect to Vss: -0.5V to 4.6V. (6) 5.0V supply voltage with respect to Vss: -0.5V to 5.5V. (7) V_CPU_IO supply voltage with respect to Vss: -0.5V to 2.1V.
Features
Features and some are listed here. (1) Direct media interface which means 10Gb/s each direction, full duplex and transparent to software. (2) PCI express which means 4 PCI express root ports, supports PCI express 1.0a, ports 1-4 can be statically configured as 4x1 or 1x4, support for full 2.5 Gb/s bandwidth in each direction per x1 lane and module based hot-plug supported. (3) PCI bus Interface which means supports PCI rev 2.3 specification at 33 MHz, six available PCI REQ/GNT pairs, support for 64-bit addressing on PCI using DAC protocol. (4) Integrated serial ATA host controller. (5) Intel matrix storage technology. (6) Intel high definition audio interface. (7) integrated IDE controller. (8) USB 2.0. (9) Integrated gigabit LAN controller. (9) Power management logic. (10) External glue integration. (11) Enhanced DMA controller.

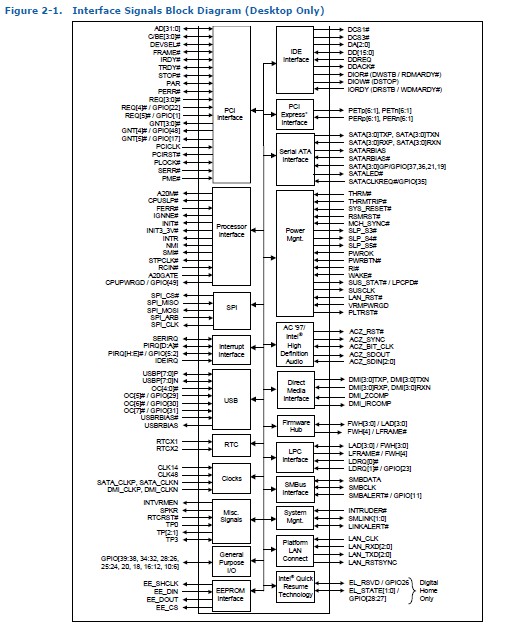

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NH82801GBM SL8YB |
Other |
|
Data Sheet |
Negotiable |
|
||||||
