DG3516DB-T5-E1

dual SPDT analog switch, 100 mA, 6 V, MICRO FOOT 10-Bump

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.00

PartNumber:: DG3516DB-T5-E1

Brand:: Vishay Telefunken - Vishay | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-10

From Other Seller

Part Number:DG3516DB-T5-E1
US $0.80 - 1.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
AD595AD

US $7.00 - 9.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

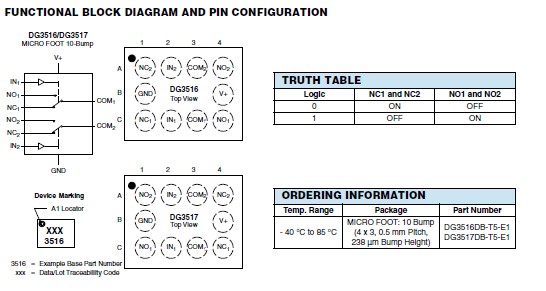

The DG3516DB-T5-E1 is a dual SPDT analog switch which operate from 1.8 V to 5.5 V single rail power supply. They are design for audio, video, and USB switching applications. The DG3516DB-T5-E1 has 2.5 Ω on resistance and 300 MHz 3dB bandwidth. 0.2 Ω on resistance matching and 1 Ω flatness make the device high linearity. The DG3516DB-T5-E1 is 1.6 V logic compatible within the full operation voltage range. The DG3516DB-T5-E1 is built on a sub micron high density process that brings low power consumption and low voltage performance. The DG3516DB-T5-E1 is packaged in MICRO FOOT chip scale package of 4 mm x 3 mm bump array.

Parametrics

DG3516DB-T5-E1 absolute maximum ratings: (1)Reference V+ to GND: －0.3 to + 6 V; (2)IN, COM, NC, NOa: －0.3 to (V+ + 0.3)V; (3)Continuous Current (NO, NC, COM): ± 100 mA; (4)Peak Current (Pulsed at 1 ms, 10 % duty cycle): ± 200mA; (5)Storage Temperature (D Suffix): －65 to 150 °C; (6)Package Solder Reflow Conditionsb IR/Convection: 250°C.

Features

DG3516DB-T5-E1 features: (1)Halogen－free according to IEC 61249－2－21 Definition; (2)1.8 V to 5.5 V operation; (3)2.5 Ωat 2.7 V RON; (4)300 MHz － 3 dB bandwidth; (5)ESD method 3015.7 > 2 kV; (6)Latch－up current 200 mA (JESD 78); (7)1.6 V logic compatible; (8)Compliant to RoHS Directive 2002/95/EC.
