Product Summary
The MAX1830EEE-T is a 3A, 1mHZ, low-voltage, step-down regulator. The MAX1830EEE-T is ideal for use in 5V and 3.3V to low-voltage conversion necessary in notebook and subnotebook computers. The MAX1830EEE-T featureS internal synchronous rectification for high efficiency and reduced component count. They require no external Schottky diode. The internal 45mΩ PMOS power switch and 55mΩ NMOS synchronous-rectifier switch easily deliver continuous load currents up to 3A. The MAX1830EEE-T produces preset +2.5V, +1.8V, or +1.5V output voltage or an adjustable output from +1.1V to VIN. The MAX1831 produces preset +3.3V, +2.5V, and +1.5V output voltages and an adjustable output from +1.1V to VIN. They achieve efficiencies as high as 94%.
Parametrics
MAX1830EEE-T absolute maximum ratings: (1)VCC, IN, SHDN to GND : -0.3V to +6V; (2)IN to VCC: ±0.3V; (3)GND to PGND: ±0.3V; (4)COMP, FB, TOFF, FBSEL, REF to GND : -0.3V to (VCC + 0.3V); (5)LX Current (Note 1): 5.1A; (6)REF Short Circuit to GND Duration : Continuous; (7)ESD Protection : ±2kV.
Features
MAX1830EEE-T features: (1)+3V to +5.5V Input Voltage Range; (2)750uA (max)Operating Supply Current; (3)<1uA Shutdown Supply Current; (4)Programmable Constant-Off-Time Operation; (5)Up to 1MHz Switching Frequency; (6)Idle Mode Operation at Light Loads; (7)Thermal Shutdown; (8)Internal Digital Soft-Start Inrush Current Limiting; (9)100% Duty Cycle During Low-Dropout Operation; (10)Output Short-Circuit Protection; (11)16-Pin QSOP Package.

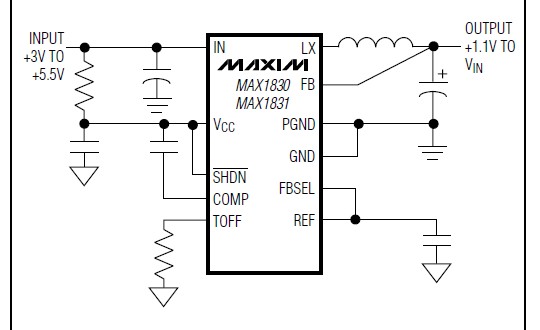

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX1830EEE-T |
Maxim Integrated Products |
DC/DC Switching Regulators |
Data Sheet |
Negotiable |
|
|||||||||||||
