CY7C68013A-100AXC

EZ-USB FX2LP USB Microcontroller, on-chip Code/Data RAM, 26 GPIOs

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: CY7C68013A-100AXC

Brand:: Cypress Semiconductor - Cypress | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-18

From Other Seller

Part Number:CY7C68013A-100AXC
US $1.00 - 3.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

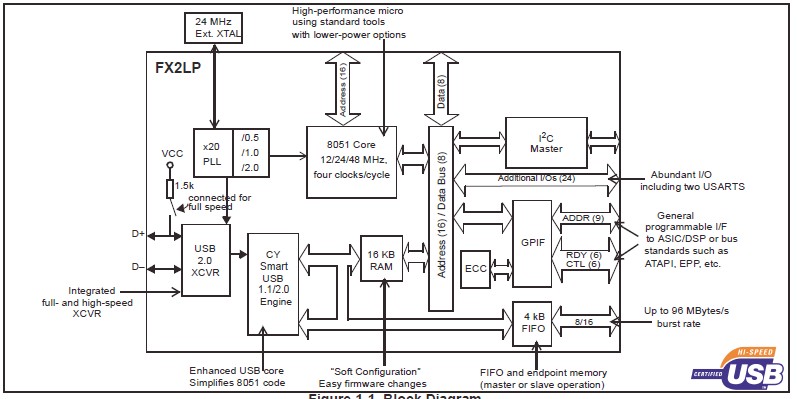

The CY7C68013A-100AXC is a EZ-USB FX2LP USB Microcontroller with 16 KBytes of on-chip Code/Data RAM. There are some typical applications of the product including: (1)Portable video recorder; (2)MPEG/TV conversion; (3)DSL modems; (4)ATA interface; (5)Memory card readers; (6)Legacy conversion devices; (7)Cameras; (8)Scanners; (9)Home PNA; (10)Wireless LAN; (11)MP3 players; (12)Networking, etc.

Parametrics

Absolute maximum ratings:(1)Storage Temperature: -65°C to +150°C;(2)Ambient Temperature with Power Supplied: 0°C to +70°C;(3)Supply Voltage to Ground Potential: -0.5 V to +4.0 V;(4)DC Input Voltage to Any Input Pin: 5.25 V;(5)DC Voltage Applied to Outputs in High Z State: -0.5V to VCC + 0.5V;(6)Power Dissipation: 300 mW;(7)Static Discharge Voltage: > 2000V; (8)Max Output Current, per I/O port :10 mA; (9)Max Output Current, all five I/O ports (128- and 100-pin packages):50 mA.

Features

Features: (1)Ultra Low power: ICC no more than 85 mA in any mode, Ideal for bus and battery powered applications;(2)USB 2.0–USB-IF high speed certified (TID # 40440111);(3)16 KBytes of on-chip Code/Data RAM;(4)Smart Media Standard ECC generation;(5)8- or 16-bit external data interface;(6)Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor;(7)3.3V operation with 5V tolerant inputs;(8)Vectored USB interrupts and GPIF/FIFO interrupts;(9)Available in lead-free 56-pin QFN package (26 GPIOs).
