Product Summary
The DIB9080HA-R is a precise AC/DC over current monitoring relay. Direct measuring or through current transformer. Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the relay status. Through the built-in shunt it is possible to monitor loads up to 5 A AC/DC.
Parametrics
DIB9080HA-R absolute maximum ratings: (1)Mechanical life ≥ 30 x 106 operations; (2)Electrical life ≥ 105 operations (at 8 A, 250 V, cos j = 1); (3)Operating frequency ≤ 7200 operations/h; (4)Dielectric strength Dielectric voltage ≥ 2 kVAC (rms)Rated impulse withstand volt. 4 kV (1.2/50 us).
Features
DIB9080HA-R features: (1)AC/DC over current monitoring relay; (2)Current measured through internal shunt; (3)Measuring range 0.5 to 5 A AC/DC; (4)Adjustable current limit on relative scale; (5)Adjustable hysteresis; (6)Programmable latching at set level; (7)Output: 8 A SPDT relay normally de－energized; (8)For mounting on DIN－rail in accordance with DIN/EN 50 022 (DIA01)or plug－in module (PIA01); (9)22.5 mm Euronorm housing (DIA01)or 36 mm plug－in module (PIA01); (10)LED indication for relay and power supply ON; (11)Galvanically separated power supply.

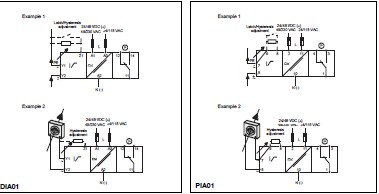

Diagrams
