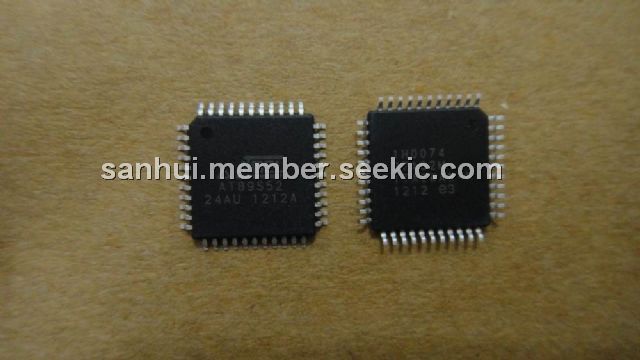

AT89S52-24AU

low-power, high-performance CMOS 8 bit microcontroller, 15.0 mA, 7.0V, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: AT89S52-24AU

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-18

From Other Seller

Part Number:AT89S52-24AU
US $1.00 - 3.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT89S52-24AU is a low power, high performance CMOS 8 bit microcontroller with 8K bytes of in-system programmable Flash memory. The AT89S52-24AU is manufactured using Atmel’s high density nonvolatile memory technology and is compatible with the industry standard 80C51 instruction set and pinout. The on chip Flash allows the program memory to be reprogrammed in system or by a conventional nonvolatile memory programmer. By combining a versatile 8 bit CPU with in system programmable Flash on a monolithic chip, the Atmel AT89S52-24AU is a powerful microcontroller which provides a highly flexible and cost effective solution to many embedded control applications.

Parametrics

AT89S52-24AU absolute maximum ratings: (1)Storage Temperature : －65°C to +150°C; (2)Voltage on Any Pin with Respect to Ground : －1.0V to +7.0V; (3)Maximum Operating Voltage : 6.6V; (4)DC Output Current: 15.0 mA; (5)Operating Temperature: －55°C to +125°C.

Features

AT89S52-24AU features: (1)4.0V to 5.5V Operating Range; (2)Fully Static Operation: 0 Hz to 33 MHz; (3)Three level Program Memory Lock; (4)256 x 8 bit Internal RAM; (5)32 Programmable I/O Lines; (6)Three 16 bit Timer/Counters; (7)Eight Interrupt Sources; (8)Full Duplex UART Serial Channel; (9)Low-power Idle and Power down Modes; (10)Interrupt Recovery from Power down Mode; (11)Watchdog Timer; (12)Dual Data Pointer; (13)Power off Flag; (14)Fast Programming Time; (15)Flexible ISP Programming (Byte and Page Mode); (16)Green (Pb/Halide-free)Packaging Option.
