ADJD-J823

color management controller, 3.7 V, 3mA, 100ms, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.75~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.75~3.00

PartNumber:: ADJD-J823

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: QFN | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-01

From Other Seller

Part Number:ADJD-J823
US $0.75 - 3.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

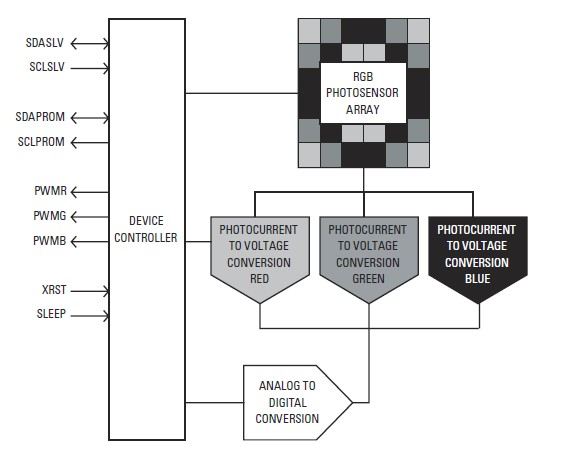

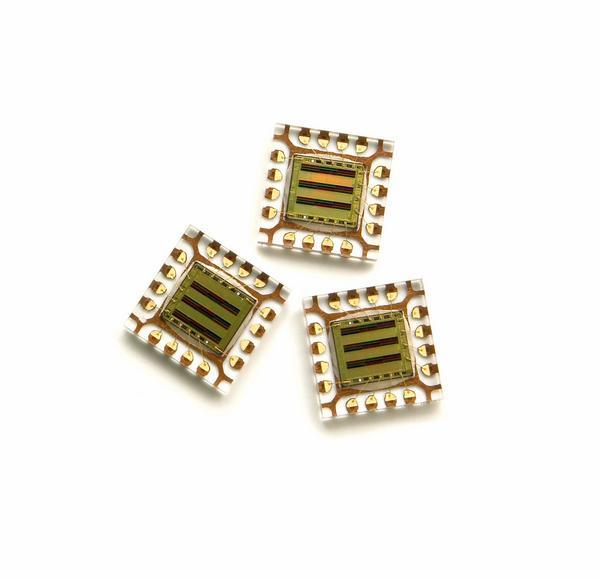

The ADJD-J823 is a color management controller with integrated rgb photosensor designed to be the optical feedback device of an RGB LED-based backlighting system. A typical system consists of an array of red, green and blue (RGB) LEDs, LED drivers and the ADJD-J823. The ADJD-J823 samples the light output from the RGB LED array, processes the color information and adjusts the light output from the RGB LEDs until the target color is achieved. To achieve this, the ADJD-J823 integrates an RGB photosensor array, an analog-to-digital converter front-end, a color data processing logic core and a high-resolution 12-bit PWM output generator.

Parametrics

ADJD-J823 absolute maximum ratings: (1)Storage temperature TSTG_ABS: -40 to 85℃; (2)Digital supply voltage, DVDD to DVSS VDDD_ABS: -0.5 to 3.7 V; (3)Analog supply voltage, AVDD to AVSS VDDA_ABS: -0.5to 3.7 V; (4)Input voltage VIN_ABS: -0.5 to VDDD+0.5 V; (5)Solder Reflow Peak temperature TL_ABS: 235℃; (6)Human Body Model ESD rating ESDHBM_ABS: 2 kV.

Features

ADJD-J823 features: (1)Integrated RGB photosensor; (2)Integrated color management feedback controller; (3)Serial Interface; (4)Direct interface to standard I2C EEPROM; (5)3-channel 12-bit PWM output - Red, Green and Blue LED channels; (6)Built-in oscillator.
