Product Summary
The SFH756V is a plastic fiber optic transmitter diode.
Parametrics
SFH756V absolute maximum ratings: (1)Operating Temperature Range TOP: －40 +85 °C; (2)Storage Temperature Range TSTG: －40 +100 °C; (3)Junction Temperature TJ: 100 °C; (4)Soldering Temperature (2 mm from case bottom, t ≤ 5 s)TS: 260 °C; (5)Reverse Voltage VR: 3 V; (6)Forward Current IF: 50 mA; (7)Surge Current (t ≤ 10 us, D = 0)IFSM: 1 A; (8)Power Dissipation PTOT: 120 mW; (9)Thermal Resistance, Junction/Air RthJA: 450 K/W.
Features
SFH756V features: (1)2.2 mm Aperture holds Standard 1000 Micron Plastic Fiber; (2)No Fiber Stripping Required; (3)Good Linearity (Forward current > 2 mA); (4)Molded Microlens for Efficient Coupling.

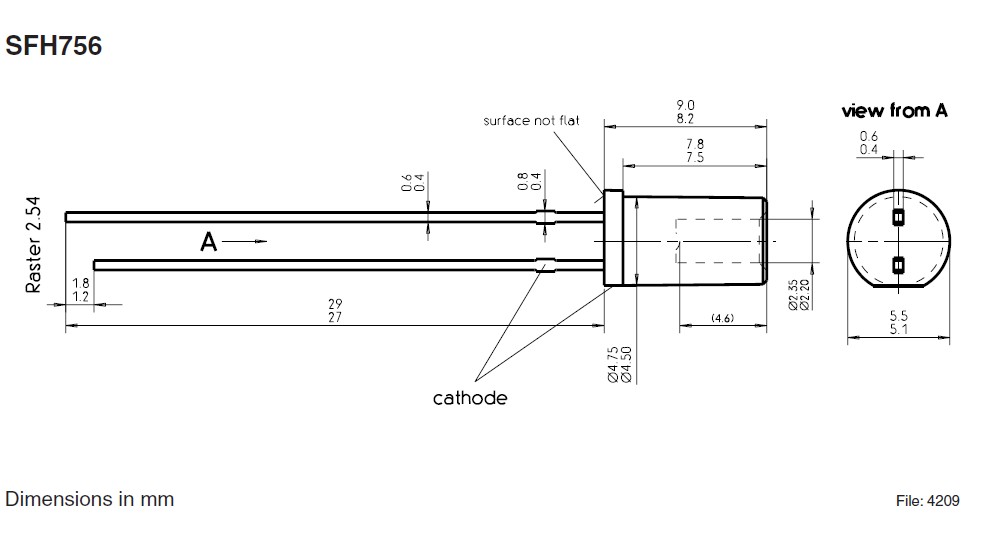

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SFH756V |
Other |
|
Data Sheet |
Negotiable |
|
||||
