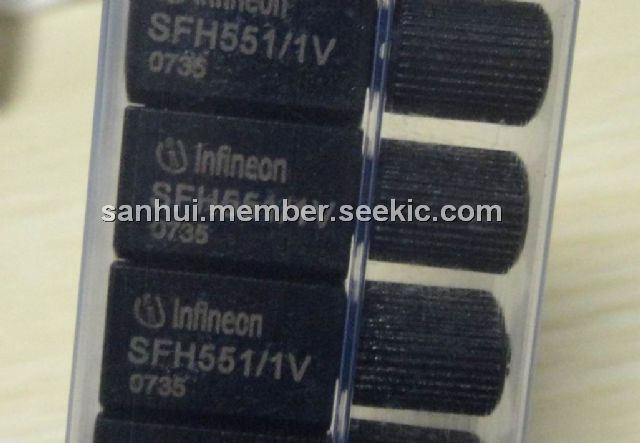

SFH551/1V

transimpedance amplifier, 15 V, 100 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.00~10.00

PartNumber:: SFH551/1V

Brand:: Infineon Technologies AG - Infineon | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-18

From Other Seller

Part Number:SFH551/1V
US $6.00 - 10.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

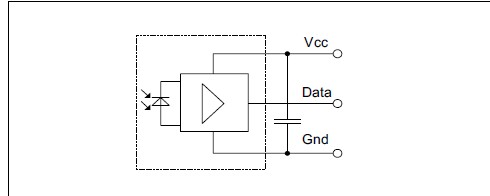

The SFH551/1V is a transimpedance amplifier with digital TTL open collector output stage and integrated photodiode. The active area of the detector in connection with the molded microlens gives an efficient coupling from the end of a plastic fiber. The receiver is fully DC coupled and therefore no line code is needed. The SFH551/1V includes a Schmitt trigger function to provide stable output states over the whole dynamic range. For optical input power levels above 6 μW typically the electrical output will be logical low and vice versa. With noise free Vcc and GND no undefined output signal is possible. The SFH551/1V must not be used without shielding the ambient light, because ambient light causes malfunction when reaching the threshold level, noise or complete switching the output. Interference free transmission is possible by using the SFH551/1V with the black plastic connector housing.

Parametrics

SFH551/1V absolute maximum ratings: (1)Operating Temperature Range TOP: －40, +85 °C; (2)Storage Temperature Range TSTG: －40, +100 °C; (3)Soldering Temperature (2 mm from case bottom, t ≤ 5 s)TS: 260 °C; (4)Supply Voltage Range without Damage VCC: －0.5, 15 V; (5)Recommended and Guaranteed Maximum Voltage: 5.5 V; (6)Minimum Supply Voltage for Function VCCmin: 4 V; (7)Minimum Pull-up Resistance (VCC = 5 V)Routmin: 330 Ω; (8)Output Voltage: V0 －0.5, 15 V; (9)Output Current I0: 50 mA; (10)Power Dissipation (output)P0: 100 mW.

Features

SFH551/1V features: (1)Bipolar IC with open collector output; (2)Digital output, TTL compatible; (3)Sensitive in visible and near IR range; (4)Low switching threshold; (5)Transfer rate ≤ 5 Mbit/s; (6)2.2 mm aperture holds standard 1000 micron plastic fiber; (7)No fiber stripping required; (8)Molded microlens for efficient coupling.
