MIC2212-GMYML TR

dual μCap low dropout regulator, 7V, 300mA, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~1.00

PartNumber:: MIC2212-GMYML TR

Brand:: Micrel Semiconductor - Micrel | Pack: QFN | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-31

From Other Seller

Part Number:MIC2212-GMYML TR
US $0.30 - 1.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

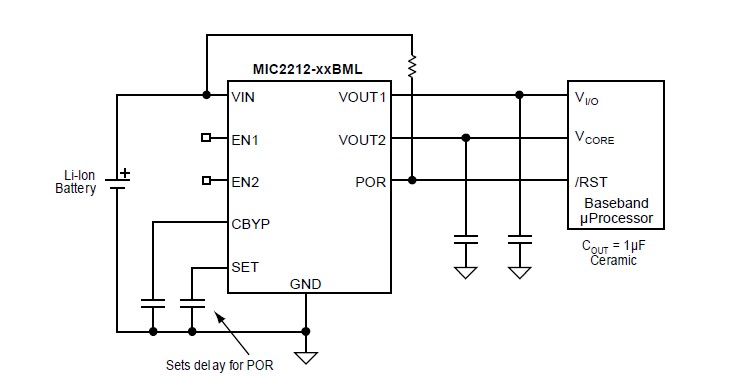

The MIC2212-GMYML TR is a dual μCap low dropout regulator with power-on reset circuit. The first regulator is capable of sourcing 150mA, while the second regulator can source up to 300mA and includes a power-on reset function. Ideal for battery operated applications, the MIC2212-GMYML TR offers 1% accuracy, extremely low dropout voltage (80mV @ 100mA), and extremely low ground current, only 48μA total. Equipped with TTL-logic-compatible enable pins, the MIC2212-GMYML TR can be put into a zero-off-mode current state, drawing no current when disabled. The MIC2212-GMYML TR is a μCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost.

Parametrics

MIC2212-GMYML TR absolute maximum ratings: (1)Supply Input Voltage (VIN): 0V to 7V; (2)Enable Input Voltage (VEN): 0V to 7V; (3)Power Dissipation (PD): Internally Limited; (4)Junction Temperature : –40℃ to +125℃; (5)Storage Temperature (TS): –65℃ to 150℃; (6)Lead Temperature (soldering, 5 sec.): 260℃.

Features

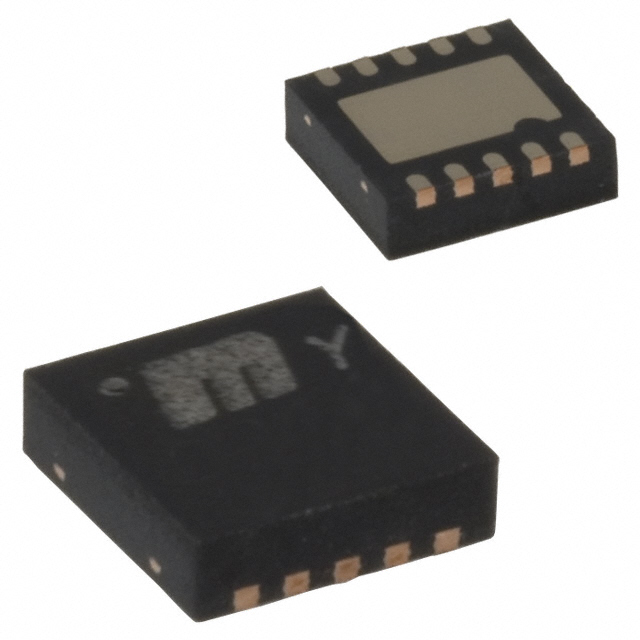

MIC2212-GMYML TR features: (1)Input voltage range: 2.25V to 5.5V; (2)Stable with ceramic output capacitor; (3)2 LDO outputs; (4)Output 1 – 150mA output current; (5)Output 2 – 300mA output current; (6)Power-on reset function with adjustable delay time; (7)Low dropout voltage of 80mV @ 100mA; (8)Ultra-low quiescent current of 48μA; (9)High output accuracy:; (10)+1.0% initial accuracy; (11)+2.0% over temperature; (12)Thermal shutdown protection; (13)Current limit protection; (14)Tiny 10-pin 3mm × 3mm MLF package.
