Product Summary

The MAX8676ELB+T is an ultra-small, high-efficiency, CMOS, step-up, DC-DC switching regulator for 1-cell battery-powered systems. The MAX8676ELB+T accepts a positive input voltage between 0.8V and VOUT and converts it to a higher, pin-selectable output voltage of 3.3V or 5V. The MAX8676ELB+T adjustable version accepts 0.8V to 6.0V input voltages and generates a higher adjustable output voltage in the 2.7V to 6.0V range. Typical efficiencies are greater than 80%. Typical no-load supply current is 100uA (1μA in shutdown). The MAX8676ELB+T combine ultra-low quiescent supply current and high efficiency to give maximum battery life. Its high switching frequency permits the use of small, low-cost inductors and capacitors. Additionally, internal peak-current limiting protects the IC.

Parametrics

MAX8676ELB+T absolute maximum ratings: (1)Supply Voltage (OUT to GND): -0.3V, +7V; (2)Switch Voltage (LX to GND): -0.3V, +7V; (3)SHDN , LBO to GND : -0.3V, +7V; (4)LBI, REF, 3/–5–, FB to GND : -0.3V, (VOUT + 0.3V); (5)Reference Current (IREF): 2.5mA; (6)Continuous Power Dissipation (TA = +70°C) SO (derate 5.88mW/°C above +70°C): 471mW; (7)Storage Temperature Range : -65°C to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX8676ELB+T features: (1)0.8V to 6.0V Input Supply Voltage; (2)0.9V Guaranteed Start-Up Supply Voltage; (3)>80% Efficiency Over Wide Load Range; (4)100uA No-Load Battery Current (VOUT = 3.3V); (5)1uA Shutdown Mode; (6)Up to 250kHz Switching Frequency; (7)±1.5% Reference Tolerance; (8)Low-Battery Detector (LBI/LBO).

Diagrams

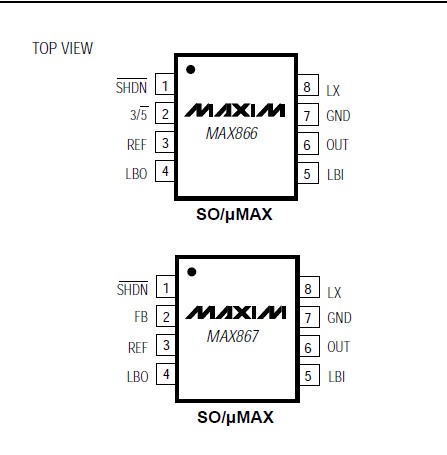

 MAX8676ELB+T pin connection
