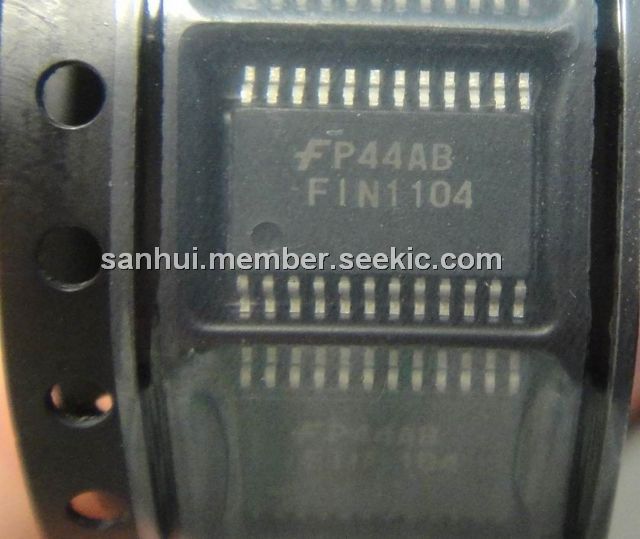

The FIN1104MTCX is a 4 port repeater. The FIN1104MTCX is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The FIN1104 accepts and outputs LVDS levels with a typical differential output swing of 330 mV which provides low EMI at ultra low power dissipation even at high frequencies. The FIN1104MTCX provides a VBB reference for AC coupling on the inputs. In addition the FIN1104MTCX can directly accept LVPECL, HSTL, and SSTL-2 for translation to LVDS.
Parametrics
FIN1104MTCX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +4.6V; (2)LVDS DC Input Voltage (VIN): -0.5V to +4.6V; (3)LVDS DC Output Voltage (VOUT): -0.5V to +4.6V; (4)Driver Short Circuit Current (IOSD)Continuous: 10 mA; (5)Storage Temperature Range (TSTG): -65℃ to +150℃; (6)Max Junction Temperature (TJ): 150℃; (7)Lead Temperature (TL)(Soldering, 10 seconds): 260℃; (8)ESD (Human Body Model): 7500V; (9)ESD (Machine Model): 400V.
Features
FIN1104MTCX features: (1)Greater than 800 Mbps data rate; (2)3.3V power supply operation; (3)3.5 ps maximum random jitter and 135 ps maximum deterministic jitter; (4)Wide rail-to-rail common mode range; (5)LVDS receiver inputs accept LVPECL, HSTL, and SSTL-2 directly; (6)Ultra low power consumption; (7)20 ps typical channel-to-channel skew; (8)Power off protection; (9)> 7.5 kV HBM ESD Protection; (10)Meets or exceeds the TIA/EIA-644-A LVDS standard; (11)Available in space saving 24-Lead TSSOP package; (12)Open circuit fail safe protection; (13)VBB reference output.

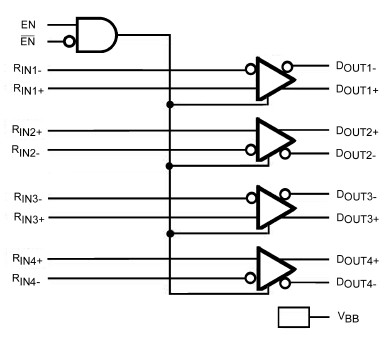

Diagrams
