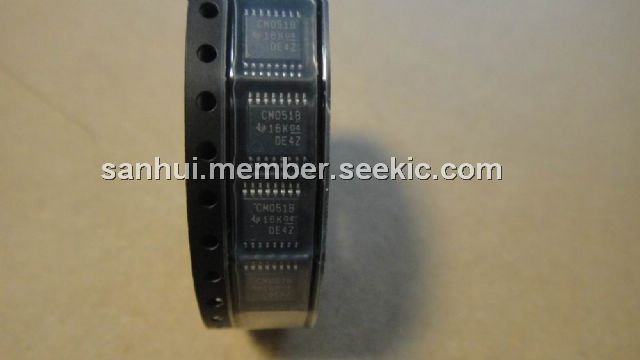

The CD4051BPWR is a single 8－Channel multiplexer having three binary control inputs, A, B, and C, and an inhibit input. The CD4051BPWR three binary signals select 1 of 8 channels to be turned on, and connect one of the 8 inputs to the output. The CD4052B is a differential 4－Channel multiplexer having two binary control inputs, A and B, and an inhibit input. The two binary input signals select 1 of 4 pairs of channels to be turned on and connect the analog inputs to the outputs. When the CD4051BPWR used as demultiplexers, the CHANNEL IN/OUT terminals are the outputs and the COMMON OUT/IN terminals are the inputs.
Parametrics
CD4051BPWR absolute maximum ratings: (1)Supply Voltage (V+ to V－)Voltages Referenced to VSS Terminal: －0.5V to 20V; (2)DC Input Voltage Range: －0.5V to VDD +0.5V; (3)DC Input Current, Any One Input: ±10mA.
Features
CD4051BPWR features: (1)Low ON Resistance, 125Ω (Typ)Over 15VP－P Signal Input Range for VDD－VEE = 18V; (2)High OFF Resistance, Channel Leakage of ±100pA (Typ)at VDD－VEE = 18V; (3)Logic－Level Conversion for Digital Addressing Signals of 3V to 20V (VDD－VSS = 3V to 20V)to Switch Analog Signals to 20VP－P (VDD－VEE = 20V); (4)Matched Switch Characteristics, rON = 5Ω (Typ)for VDD－VEE = 15V; (5)Very Low Quiescent Power Dissipation Under All Digital－ Control Input and Supply Conditions, 0.2uW (Typ)at VDD－VSS = VDD－VEE = 10V.

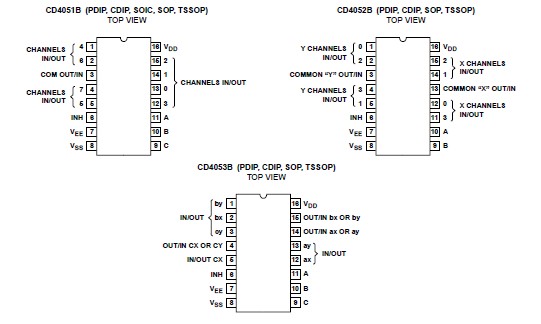

Diagrams
