Product Summary
The ATMEGA8A-AU is a low power CMOS 8 bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8A-AU achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA8A-AU absolute maximum ratings: (1)Storage Temperature : : 65℃ to +150℃; (2)Voltage on any Pin except RESET; (3)with respect to Ground : －0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: －0.5V to +13.0V; (5)Maximum Operating Voltage : 6.0V; (6)DC Current per I/O Pin : 40.0mA; (7)DC Current VCC and GND Pins: 300.0mA.
Features
ATMEGA8A-AU features: (1)Special Microcontroller Features: Power-on Reset and Programmable Brown-out Detection, Internal Calibrated RC Oscillator, External and Internal Interrupt Sources, Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby; (2)I/O and Packages: 23 Programmable I/O Lines, 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF; (3)Operating Voltages: 2.7－5.5V; (4)Speed Grades: 0－16MHz; (5)Power Consumption at 4Mhz, 3V, 25℃: Active: 3.6mA, Idle Mode: 1.0mA, Power-down Mode: 0.5uA.

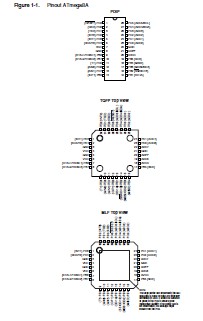

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATMEGA8A-AU |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB, 512B EE 16MHz 1KB SRAM |
Data Sheet |
|
|
||||||||||||
 |
ATMEGA8A-AUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB FLSH 512B EE 1KB SRAM-16MHz |
Data Sheet |
|
|
||||||||||||
