Product Summary
The APW7080KAI-TRG is a 4A, asynchronous, step down converter with integrated 80mΩ P channel MOSFET. The device, with current mode control scheme, can convert 4.5~26V input voltage to the output voltage adjustable from 0.8 to 90% VIN to provide excellent output voltage regulation. The APW7080KAI-TRG regulates the output voltage in automatic PSM/PWM mode operation, depending on the output current, for high efficiency operation over light to full load current.The APW7080KAI-TRG is also equipped with power onreset, soft start, and whole protections (undervoltage, over temperature, and current limit) into a single package. In shutdown mode, the supply current drops below 5uA.
Parametrics
APW7080KAI-TRG absolute maximum ratings: (1) P－channel Power MOSFET Leakage Current VEN = 0V, VLX = 0V, VIN = 26V: 4 uA; (2) IFB FB Pin Input Current VFB = 0.8V: －100, +100 nA; (3) IEN EN Pin Input Current VEN < 3V: －500, +500 nA.
Features
APW7080KAI-TRG features: (1) Power On Reset Monitoring; (2) Fixed 380kHz Switching Frequency in PWMMode; (3) Built in Digital Soft Start; (4) Output Current Limit Protection with Frequency Foldback; (5) 70%Undervoltage Protection; (6) Over Temperature Protection; (7) <5uA Quiescent Current during Shutdown; (8) Thermal Enhanced SOP 8P Package; (9) Lead Free and Green Devices Available (RoHS Compliant).

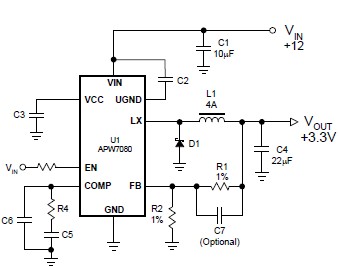

Diagrams
 |
