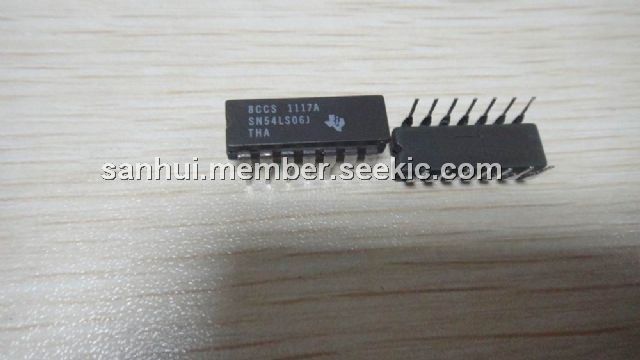

Product Summary

The SN54LS06J is a hex inverter buffer/driver which feature high-voltage open-collector outputs to interface with high-level circuits (such as MOS), or for driving high-current loads, and also are characterized for use as inverter buffers for driving TTL inputs. The SN54LS06J has a rated output voltage of 30 V, and the SN74LS16 has a rated output voltage of 15 V. The maximum sink current for the SN54LS06 is 30 mA, and for the SN54LS06J and SN74LS16 it is 40 mA. These devices are compatible with most TTL families. Inputs are diode-clamped to minimize transmission effects, which simplifies design. Typical power dissipation is 175 mW, and average propagation delay time is 8 ns.

Parametrics

SN54LS06J absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI (see Note 1): 7 V; (3)Output voltage, VO (see Notes 1 and 2): SN54LS06: 30 V; (4)Storage temperature range, Tstg: -65°C to 150°C.

Features

SN54LS06J features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamps and Relays; (5)Inputs Fully Compatible With Most TTL Circuits.

Diagrams

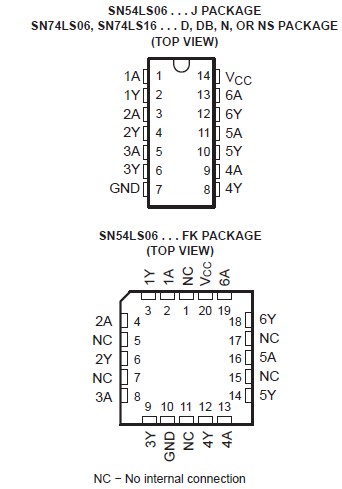

 SN54LS06J pin connection
