74LVC1G08GV

Si-gate CMOS device, 6.5 V, 100 mA, 250 mW, SOT23-5

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~0.20

PartNumber:: 74LVC1G08GV

Brand:: NXP Semiconductors - nxp | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-01

From Other Seller

Part Number:74LVC1G08GV
US $0.05 - 0.20
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74LVC1G08GV is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families. Input can be driven from either 3.3 V or 5 V devices. These features allow the use of the 74LVC1G08GV in a mixed 3.3 V and 5 V environment. Schmitt trigger action at all inputs makes the 74LVC1G08GV tolerant for slower input rise and fall time.

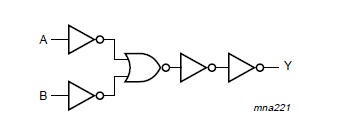

Parametrics

74LVC1G08GV absolute maximum ratings: (1)VCC supply voltage: -0.5 to +6.5 V; (2)IIK input diode current VI < 0 V: 50 mA; (3)VI input voltage: -0.5 to +6.5 V; (4)IOK output diode current VO > VCC or VO < 0 V: ±50 mA; (5)VO output voltage active mode: -0.5 to VCC + 0.5 V; (6)Power-down mode: -0.5 to +6.5 V; (7)IO output source or sink current VO = 0 V to VCC: ±50 mA; (8)ICC, IGND VCC or GND current: ±100 mA; (9)Tstg storage temperature: -65 to +150 ℃; (10)Ptot power dissipation Tamb = -40 ℃ to +125 ℃: 250 mW.

Features

74LVC1G08GV features: (1)Wide supply voltage range from 1.65 V to 5.5 V; (2)High noise immunity; (3)±24 mA output drive (VCC = 3.0 V); (4)CMOS low power consumption; (5)Latch-up performance £250 mA; (6)Direct interface with TTL levels; (7)Inputs accept voltages up to 5 V; (8)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V; (9)Multiple package options; (10)Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃.
