Product Summary
The MSP430F4152IPMR is an ultralow-power microcontroller. The MSP430F4152IPMR consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portablemeasurement applications. The MSP430F4152IPMR features a powerful 16-bit RISC CPU, 16-bit registers, and constant generator that contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 ms. The MSP430F4152IPMR is a microcontroller configurationwith two 16-bit timers, a basic timerwith a real--time clock, a 10-bit A/D converter, a versatile analog comparator, two universal serial communication interfaces, up to 48 I/O pins, and a liquid crystal display driver.
Parametrics
MSP430F4152IPMR absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg: Unprogrammed device: -55℃ to 150℃; (5)Programmed device: -55℃ to 85℃.
Features
MSP430F4152IPMR features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Ultralow Power Consumption; (3)Five Power-Saving Modes; (4)Wake-Up From Standby Mode in Less Than 6 ms; (5)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (6)16-Bit Timer_A With Three Capture/Compare Registers; (7)16-Bit Timer_A With Five Capture/Compare Registers; (8)Two Universal Serial Communication Interfaces (USCIs); (9)Integrated LCDriver With Contrast Control for Up to 144 Segments; (10)Basic Timer With Real Time Clock Feature; (11)Brownout detector; (12)On-Chip Comparator for Analog Signal Compare Function or Slope A/D; (13)10-Bit 200-ksps Analog-to-Digital (A/D)Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller; (14)Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse; (15)Bootstrap Loader; (16)On-Chip Emulation Module.

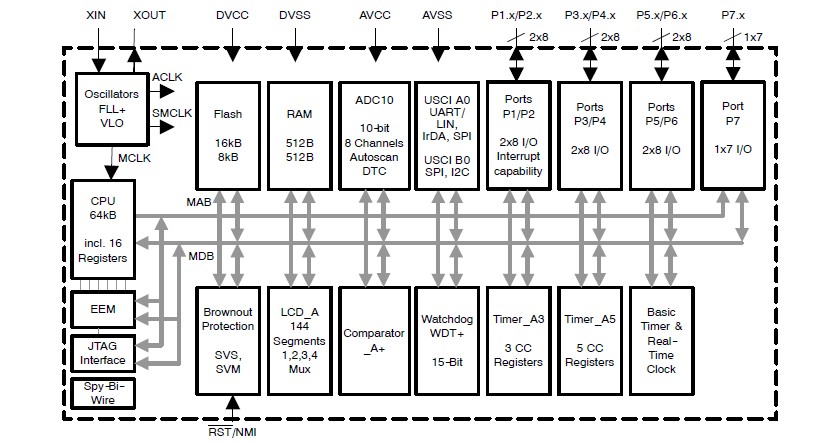

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MSP430F4152IPMR |
![]() Texas Instruments |
![]() 16-bit Microcontrollers (MCU) 16B Ultra-Lo-Pwr 8KB Fl 512B RAM 10B ADC |
![]() Data Sheet |
![]()
|
|
||||||||||||
