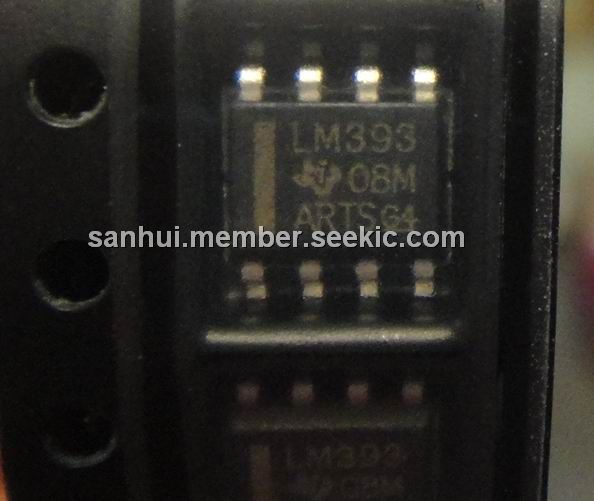

Product Summary
The LM393DR is a dual differential comparator that designed to operate from a single power supply over a wide range of voltages. The LM393DR Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM193 is characterized for operation from -55°C to 125°C. The LM293 and LM293A are characterized for operation from -25°C to 85°C. The LM393DR is characterized for operation from 0°C to 70°C. The LM2903 is characterized for operation from -40°C to 125°C.
Parametrics
LM393DR absolute maximum ratings: (1)Supply voltage, VCC (see Note 1): 36 V; (2)Differential input voltage, VID (see Note 2): ±36 V; (3)Input voltage range, VI (either input): -0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground (see Note 3): Unlimited; (7)Operating virtual junction temperature, TJ: 150°C; (8)Case temperature for 60 seconds: FK package: 260°C; (9)Lead temperature 1,6 mm (1/16 inch)from case for 60 seconds: JG package: 300°C; (10)Storage temperature range, Tstg: -65°C to 150°C.
Features
LM393DR features: (1)Low Supply-Current Drain Independent of Supply Voltage . 0.4 mA Typ Per Comparator; (2)Low Input Bias Current: 25 nA Typ; (3)Low Input Offset Current: 3 nA Typ (LM193); (4)Low Input Offset Voltage: 2 mV Typ; (5)Common-Mode Input Voltage Range Includes Ground; (6)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V; (7)Low Output Saturation Voltage; (8)Output Compatible With TTL, MOS, and CMOS.

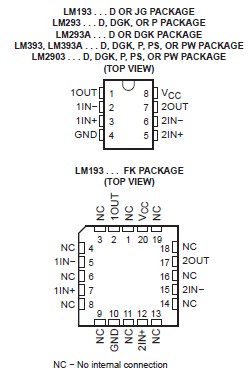

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LM393DR |
Texas Instruments |
Comparator ICs Dual Differential |
Data Sheet |
|
|
|||||||||||||
LM393DR2 |
ON Semiconductor |
Comparator ICs 2-36V Dual |
Data Sheet |
Negotiable |
|
|||||||||||||
LM393DRE4 |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
|||||||||||||
LM393DRG4 |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
|||||||||||||
LM393DRG3 |
Texas Instruments |
Comparator ICs Dual Diff Comparator |
Data Sheet |
|
|
|||||||||||||
LM393DR2G |
ON Semiconductor |
Comparator ICs 2-36V Dual Commercial Temp |
Data Sheet |
|
|
