Product Summary

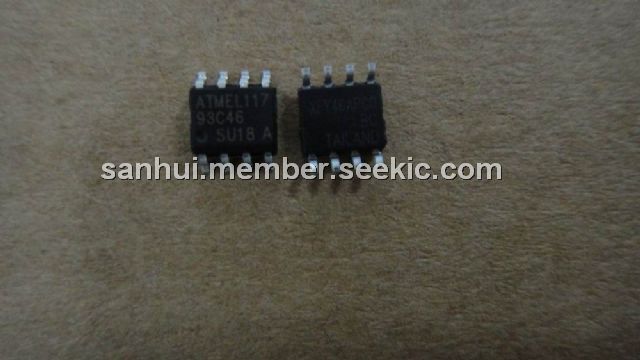

The AT93C46-SU18 is a 3-wire serial eeprom. The AT93C46-SU18 provides 1024/2048/4096 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 64/128/256 words of 16 bits each, when the ORG Pin is connected to VCC and 128/256/512 words of 8 bits each when it is tied to ground. The device is optimized for use in many industrial and commercial applications where low power and low voltage operations are essential. The AT93C46-SU18 is available in space saving 8-pin PDIP and 8-pin JEDEC and EIAJ SOIC packages.

Parametrics

AT93C46-SU18 absolute maximum ratings: (1)Storage Temperature : -65°C to +150°C; (2)Voltage on Any Pin with Respect to Ground : -1.0V to +7.0V; (3)Maximum Operating Voltage: 6.25V; (4)DC Output Current: 5.0 mA; (5)Operating Temperature: -55°C to +125°C.

Features

AT93C46-SU18 features: (1)3-Wire Serial Interface; (2)2 MHz Clock Rate (5V)Compatibility; (3)Self-Timed Write Cycle (10 ms max); (4)High Reliability: Endurance: 1 Million Write Cycles, Data Retention: 100 Years, ESD Protection: >4000V; (5)Automotive Grade and Extended Temperature Devices Available; (6)8-Pin PDIP, 8-Pin JEDEC and EIAJ SOIC, and 8-Pin TSSOP Packages.

Diagrams

 AT93C46-SU18 pin connection
