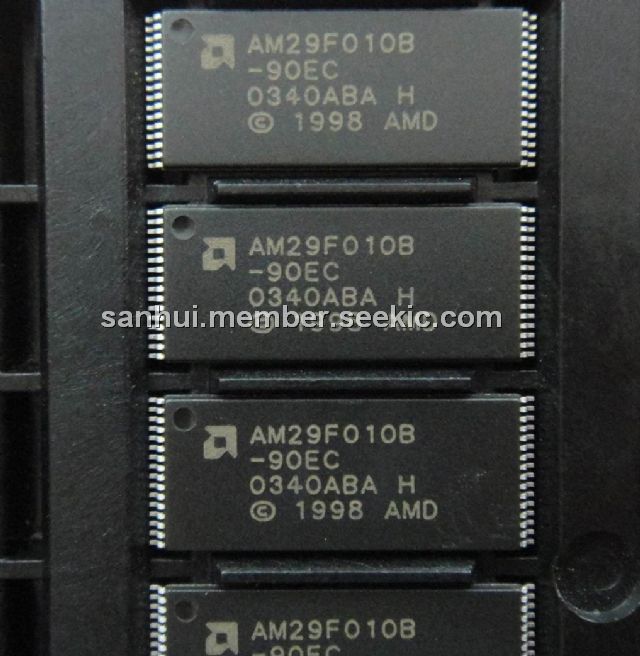

AM29F010B-90EC

1 Mbit, 5.0 Volt－only Flash memory, 7.0 V, 200 mA, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: AM29F010B-90EC

Brand:: Advanced Micro Devices - AMD | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Simmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-17

From Other Seller

Part Number:AM29F010B-90EC
US $1.00 - 3.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AM29F010B-90EC is a 1 Mbit, 5.0 Volt－only Flash memory organized as 131,072 bytes. The AM29F010B-90ECB is offered in 32－pin PDIP, PLCC and TSOP packages. The byte－wide data appears on DQ0－DQ7. The AM29F010B-90EC is designed to be programmed in－system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F010B-90EC can also be programmed or erased in standard EPROM programmers. This device is manufactured using AMD 0.32 um process technology, and offers all the features and benefits of the AM29F010B-90EC and Am29F010A.

Parametrics

AM29F010B-90EC absolute maximum ratings: (1)Storage Temperature Plastic Packages: －65°C to +125°C; (2)Ambient Temperature with Power Applied: －55°C to +125°C; (3)Voltage with Respect to Ground VCC (Note 1): －2.0 V to +7.0 V, A9 (Note 2): －2.0 V to +13.0 V; (4)All other pins (Note 1): －2.0 V to +7.0 V; (5)Output Short Circuit Current (Note 3): 200 mA.

Features

AM29F010B-90EC features: (1)Erase Suspend/Resume: Supports reading data from a sector not being erased; (2)Minimum 1 million erase cycles guaranteed per sector; (3)20－year data retention at 125°C: Reliable operation for the life of the system; (4)Package options: 32－pin PLCC, 32－pin TSOP, 32－pin PDIP; (5)Compatible with JEDEC standards: Pinout and software compatible with single－power－supply flash. Superior inadvertent write protection; (6)Data Polling and Toggle Bits: Provides a software method of detecting program or erase cycle completion.
