Product Summary

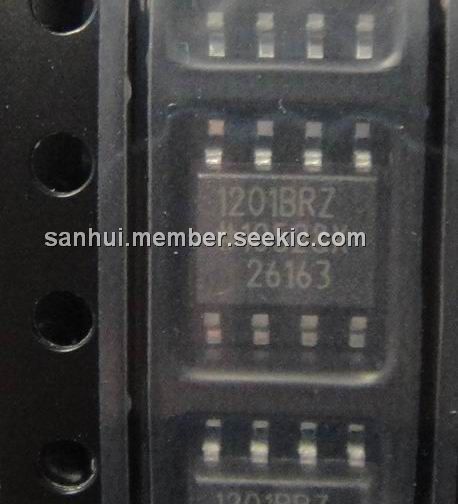

The ADUM1201BRZ-RL7 is a dual channel digital isolator based on Analog Devices iCoupler technology. Combining high speed CMOS and monolithic transformer technology, the ADUM1201BRZ-RL7 provides outstanding performance characteristics superior to alternatives such as optocoupler devices.By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with the ADUM1201BRZ-RL7. Furthermore, iCoupler devices consume one tenth to one sixth the power of optocouplers at comparable signal data rates.

Parametrics

ADUM1201BRZ-RL7 absolute maximum ratings: (1)Storage Temperature TST: -55, 150℃; (2)Ambient Operating Temperature TA: -40, 105℃; (3)Supply Voltages1 VDD1, VDD2: -0.5, 7.0V; (4)Input Voltage,1, 2 VIA, VIB: -0.5, VDDI + 0.5V; (5)Output Voltage1, 2 VOA, VOB: -0.5, VDDO + 0.5V; (6)Average Output Current, per Pin3 IO: -35, 35mA.

Features

ADUM1201BRZ-RL7 features: (1)Bidirectional communication; (2)3 V/5 V level translation; (3)High temperature operation: 105°C; (4)High data rate: dc to 25 Mbps (NRZ); (5)Narrow body SOIC 8 lead package; (6)Low power operation.

Diagrams

 ADUM1201BRZ-RL7 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADUM1201BRZ-RL7
ADUM1201BRZ-RL7


IC ISOLATOR DIGITAL DUAL 8-SOIC

Data Sheet

0-1: $2.74
1-10: $2.45
10-25: $2.20
25-100: $2.01
100-250: $1.82
250-500: $1.63
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADuM1100
ADuM1100

Other


Data Sheet

Negotiable
ADUM1100AR
ADUM1100AR


IC DIGITAL ISOLATOR 1CH 8-SOIC

Data Sheet

0-98: $2.28
ADUM1100AR-RL7
ADUM1100AR-RL7


IC DIGITAL ISOL/COUPLER 8SOIC

Data Sheet

0-1: $2.92
1-10: $2.62
10-25: $2.36
25-100: $2.14
100-250: $1.94
250-500: $1.74
ADUM1100ARZ
ADUM1100ARZ


IC DIGITAL ISOLATOR 1CH 8-SOIC

Data Sheet

0-1: $2.44
1-10: $2.17
10-100: $1.78
100-250: $1.61
250-500: $1.44
500-1000: $1.22
1000-2500: $1.16
ADUM1100ARZ-RL7
ADUM1100ARZ-RL7


IC DIGITAL ISOL/COUPLER 8-SOIC

Data Sheet

0-1: $2.50
1-10: $2.24
10-25: $2.02
25-100: $1.83
100-250: $1.66
250-500: $1.49
ADUM1100BR
ADUM1100BR


IC DIGITAL ISOL/COUPLER 8SOIC

Data Sheet

0-98: $2.60
