Product Summary

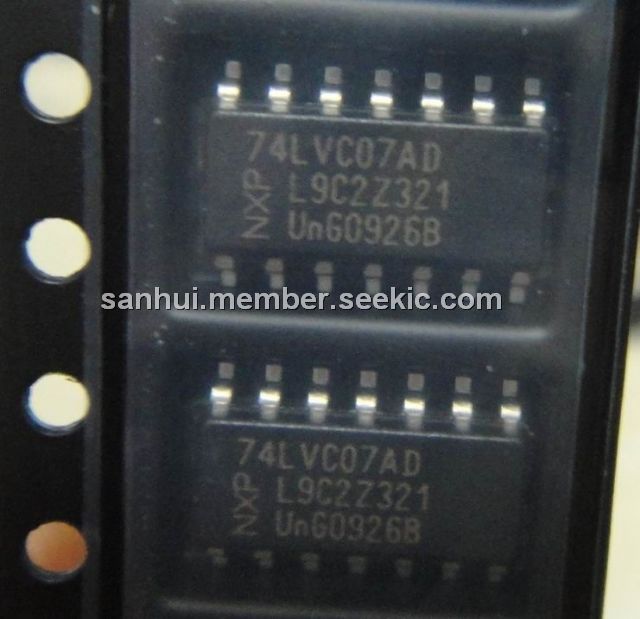

The 74LVC07AD is a high performance, low power, low voltage, Si gate CMOS device, superior to most advanced CMOS compatible TTL families. Inputs can be driven from either 3.3 or 5 V devices. The 74LVC07AD feature allows the use of these devices as translators in a mixed 3.3 to 5 V environment. The 74LVC07AD provides six non inverting buffers. The outputs of the 74LVC07AD is open drain and can be connected to other open drain outputs to implement active LOW wired OR or active HIGH wired AND functions.
Parametrics
74LVC07AD absolute maximum ratings: (1)VCC DC supply voltage: －0.5, +6.5 V; (2)IIK DC input diode current VI < 0: －50 mA; (3)VI DC input voltage note 1: －0.5, +6.5 V; (4)IOK DC output clamping diode current VO < 0: －50 mA; (5)IO DC output sink current VO = 0 to VCC: 50 mA; (6)ICC, IGND DC VCC or GND current: ±100 mA; (7)Tstg storage temperature: －65, +150 °C.
Features
74LVC07AD features: (1)5 V tolerant inputs and outputs (open drain)for interfacing with 5 V logic; (2)Wide supply voltage range from 1.65 to 5.5 V; (3)CMOS low power consumption; (4)Direct interface with TTL levels; (5)Inputs accept voltages up to 5 V; (6)Complies with JEDEC standard no. 8－1A.

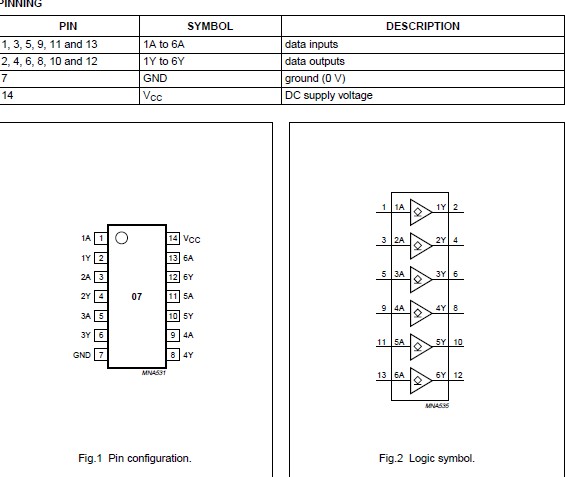

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LVC07AD |
NXP Semiconductors |
Buffers & Line Drivers HEX BUFFER/DRIVER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74LVC07AD,112 |
NXP Semiconductors |
Buffers & Line Drivers HEX BUFFER/DRIVER |
Data Sheet |
|
|
||||||||||||
|
74LVC07AD,118 |
NXP Semiconductors |
Buffers & Line Drivers HEX BUFF/DRVR 3ST |
Data Sheet |
|
|
||||||||||||
